Ultragrid is an enhanced, customizable version of the classic Tic-Tac-Toe game that supports variable board sizes, advanced gameplay modes, and a modern terminal-based user interface using C++ and FTXUI.

UltraGrid reimagines Tic-Tac-Toe with:

• Nested Grid System: 3×3 grid of smaller 3×3 boards

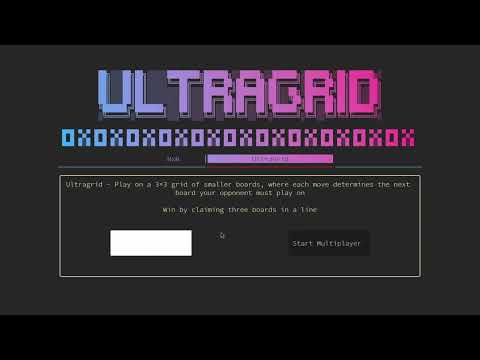

• Dynamic UI/UX: Animated terminal interface with color gradients
• AI Opponent: Adjustable difficulty levels
• Modern C++: Utilizes C++17 features and FTXUI library

Key Innovations:

• Move constraints create deeper strategy
• Real-time visual feedback
• Multi-threaded animations
• Modular architecture for future expansion

GAMEPLAY

DIRECTORY STRUCTURE & FILE FUNCTIONS

Full File Directory Structure

Ultragrid/
├── src/
│   ├── include/
│   │   ├── headers/
│   │   │   ├── art.hpp                 (ASCII art for UI elements)
│   │   │   ├── endscreen.hpp           (End game display declarations)
│   │   │   ├── game_globals.hpp        (Global variables & callbacks)
│   │   │   ├── helpers.hpp             (Utility functions)
│   │   │   ├── splashscreen.hpp        (Start screen declarations)
│   │   │   ├── startmenu.hpp           (Main menu declarations)
│   │   │   ├── ultragrid.hpp           (Game mode declarations)
│   │   │   └── ultragrid_ai.hpp        (AI opponent declarations)
│   │   │
│   │   └── implement/
│   │       ├── endscreen.cpp           (End game screen implementation)
│   │       ├── game_globals.cpp        (Global state management)
│   │       ├── grid_components.cpp     (Grid UI components implementation)
│   │       ├── helpers.cpp             (Utility functions implementation)
│   │       ├── n_grid.cpp              (NxN grid mode - placeholder)
│   │       ├── splashscreen.cpp        (Start screen implementation)
│   │       ├── startmenu.cpp           (Main menu implementation)
│   │       ├── ultragrid.cpp           (Game modes implementation)
│   │       └── ultragrid_ai.cpp        (AI opponent implementation)
│   │
│   └── main.cpp                        (Application entry point)
│
├── bin/                                (Compiled executable)
├── build/                              (Build files)
├── CMakeLists.txt                      (Build configuration)
└── build.sh                            (Build script)

File Functions:

File	Purpose	Key Features
main.cpp	Program entry point	Game mode routing, flow control
art.hpp	ASCII art storage	Logos, symbols, decorative elements
game_globals.hpp	Global state management	Player tracking, move history
grid_components.cpp	Core game grid	TicTacToeButton, SmallGrid, LargeGrid classes
ultragrid_ai.cpp	AI logic	Difficulty levels, move strategies
startmenu.cpp	Main menu	Animated UI, mode selection
endscreen.cpp	Game completion	Victory/Draw handling, restart options

---

TECHNICAL IMPLEMENTATION

Full Class Hierarchy

Game System
├── UI Flow Controllers
│   ├── StartupUI()                     [startmenu.cpp]
│   │   └── Returns selected game mode
│   │
│   ├── RenderStartScreen()             [splashscreen.cpp]
│   │   └── Displays splash screen with ASCII art
│   │
│   └── EndScreenUI()                   [endscreen.cpp]
│       └── Shows game results and options
│
├── Game Logic Managers
│   ├── UltragridGameManagerMultiplayer [ultragrid.cpp]
│   │   ├── Properties
│   │   │   ├── screen: ScreenInteractive&
│   │   │   ├── gamestatus: int&
│   │   │   ├── grid: LargeGrid
│   │   │   ├── gridcmp: Component
│   │   │   ├── gridholder: Component
│   │   │   ├── options: Component
│   │   │   ├── main_container: Component
│   │   │   └── renderer: Component
│   │   │
│   │   └── Methods
│   │       ├── SetupUI(bool is_singleplayer)
│   │       ├── UpdateUI()
│   │       ├── CheckAndUpdateSmallGrids()
│   │       ├── CheckGameEnd()
│   │       ├── UpdateValidGrids()
│   │       ├── RefreshGridComponent()
│   │       └── SwitchPlayer()
│   │
│   └── UltragridGameManagerSingleplayer [ultragrid.cpp]
│       ├── Properties (inherited from UltragridGameManagerMultiplayer)
│       └── Methods
│           ├── MakeAIMove(): bool
│           └── UpdateUI() (override)
│
├── AI System
│   └── UltragridAI [ultragrid_ai.cpp]
│       └── Static Methods
│           ├── MakeMove(int difficulty, LargeGrid& grid): bool
│           ├── MakeBasicMove(LargeGrid& grid): bool
│           ├── MakeRandomMove(LargeGrid& grid): bool
│           └── MakeSmartMove(LargeGrid& grid): bool
│
├── Grid Components [grid_components.cpp]
│   ├── TicTacToeButton
│   │   ├── Properties
│   │   │   ├── gridValue: int&
│   │   │   ├── row, col: int
│   │   │   ├── isHovered, isPressed: bool
│   │   │   ├── click_release_edge: bool
│   │   │   ├── highlighted: bool
│   │   │   ├── options: TicTacToeButton_Options&
│   │   │   ├── box_: ftxui::Box
│   │   │   ├── button: ftxui::Component
│   │   │   └── screen: ftxui::ScreenInteractive&
│   │   │
│   │   └── Methods
│   │       ├── getSymbolString(int value): string
│   │       ├── makeButton(): ftxui::Component
│   │       ├── TakeFocus_btn()
│   │       ├── simulate_click()
│   │       ├── highlight()
│   │       └── GetButton(): Component
│   │
│   ├── SmallGrid
│   │   ├── Properties
│   │   │   ├── buttons[3][3]: TicTacToeButton*
│   │   │   ├── selected_x, selected_y: int
│   │   │   ├── buttonOptions: TicTacToeButton_Options*
│   │   │   ├── gridComponent: Component
│   │   │   ├── screen: ScreenInteractive&
│   │   │   ├── bigicon: int
│   │   │   └── grid[3][3]: int
│   │   │
│   │   └── Methods
│   │       ├── getbuttons(): TicTacToeButton* (&)[3][3]
│   │       ├── getGridRef(): int (*)[3]
│   │       ├── takefocus_sm_grid(int x, int y)
│   │       ├── getGridComponent(): Component
│   │       ├── setbigicon(int bigicon_set)
│   │       └── makeGridComponent(): Component
│   │
│   └── LargeGrid
│       ├── Properties
│       │   ├── grids[3][3]: SmallGrid*
│       │   ├── selected_x, selected_y: int
│       │   ├── mainComponent: Component
│       │   ├── grids_val[3][3][3][3]: int
│       │   ├── big_grid_values[3][3]: int
│       │   ├── grid_options[3][3][1]: TicTacToeButton_Options_Grid
│       │   └── screen: ScreenInteractive&
│       │
│       └── Methods
│           ├── getValue(int bigRow, int bigCol, int smallRow, int smallCol): int
│           ├── getValue_big(int bigRow, int bigCol): int
│           ├── get4DArray(int (*out)[3][3][3]): void
│           ├── setoptions(int bigRow, int bigCol, TicTacToeButton_Options op)
│           ├── set_valid_grid(int bigRow, int bigCol)
│           ├── makeGridComponent(): Component
│           ├── getComponent(): Component
│           ├── setbigicon_big(int x, int y, int icon)
│           ├── takefocus_big(int x, int y, int z, int w)
│           ├── setCurrentPlayer(int player)
│           ├── SetUpdateCallback(std::function<void()> callback)
│           └── makemove(int gx, int gy, int x, int y)
│
├── Global State [game_globals.cpp]
│   ├── namespace variables
│   │   ├── currentPlayer: int
│   │   ├── lastmove[2]: int
│   │   └── difficulty: int
│   │
│   └── namespace callbacks
│       └── onUpdate: std::function<void()>
│
├── Custom Types [headers/helpers.hpp]
│   ├── TicTacToeButton_Options = int[1]
│   ├── TicTacToeButton_Options_Grid = int[3][3][1]
│   ├── smallgrid_val_ptr = int (*)[3][3]
│   ├── largegrid_val_ptr = int (*)[3][3][3][3]
│   └── largegrid_val = int[3][3][3][3]
│
├── Enums [headers/game_globals.hpp]
│   └── CustomEvent
│       ├── RefreshComponent
│       └── BurronCallback
│
└── Helper Functions [helpers.cpp]
    ├── ExecuteCommand(const std::string& command): void
    ├── largegrid_to_cout(largegrid_val grid4d): void
    ├── print_grid(int grid[3][3]): void
    ├── checkBoard(int board[3][3]): int
    └── namespace ftxui
        ├── Split(std::string the_text): Elements
        ├── nonWrappingParagraph(std::string the_text): Element
        └── paragraphAlignCenter(const std::string& the_text): Element

---

Component Relationships

                                    ┌───────────────┐
                                    │    main.cpp   │
                                    └───────┬───────┘
                                            │
                     ┌────────────────────┬─┴──────────────────┐
                     │                    │                    │
              ┌──────▼──────┐      ┌──────▼──────┐      ┌──────▼──────┐
              │ StartupUI() │      │ RenderStart │      │   EndScreen  │
              │              │      │   Screen()  │      │     UI()     │
              └──────┬──────┘      └─────────────┘      └─────────────┘
                     │
      ┌──────────────┴──────────────┐
      │                             │
┌─────▼─────┐              ┌────────▼────────┐
│ Ultragrid │              │    Ultragrid    │
│Singleplayer│              │   Multiplayer   │
└─────┬─────┘              └────────┬────────┘
      │                             │
┌─────▼─────┐              ┌────────▼────────┐
│ UltragridAI│              │  UltragridGame  │
│            │              │ManagerMultiplayer│
└─────┬─────┘              └────────┬────────┘
      │                             │
      └────────────────┬────────────┘
                       │
                 ┌─────▼─────┐
                 │ LargeGrid │
                 └─────┬─────┘
                       │
                 ┌─────▼─────┐
                 │ SmallGrid │
                 └─────┬─────┘
                       │
                 ┌─────▼─────┐
                 │TicTacToe  │
                 │  Button   │
                 └───────────┘

1. Core Game Classes

TicTacToeButton

class TicTacToeButton {
private:
    int& gridValue;                      // Reference to cell value in grid
    int row, col;                        // Grid coordinates
    bool isHovered = false;              // Mouse hover state
    bool isPressed = false;              // Button press state
    bool click_release_edge = false;     // Edge detection for click
    bool highlighted = false;            // Visual highlight state
    TicTacToeButton_Options& options;    // Button configuration
    ftxui::Box box_;                     // Box dimensions
    ftxui::Component button;             // FTXUI component
    ftxui::ScreenInteractive& screen;    // Screen reference
    bool callback_used = false;          // Callback tracking

public:
    void TakeFocus_btn();                // Focus this button
    void simulate_click();               // Programmatically trigger click
    void highlight();                    // Apply visual highlight
    ftxui::Component GetButton() const;  // Get UI component
    int GetRow() const;                  // Get row position
    int GetCol() const;                  // Get column position
};

Function:

• Manages individual cells in the game grid
• Handles user interactions (click, hover, focus)
• Maintains visual state (symbols, highlighting)
• Updates game state when activated
• Provides programmatic control for AI moves

SmallGrid

class SmallGrid {
private:
    TicTacToeButton* buttons[3][3];           // 3x3 grid of buttons
    int selected_x = 0, selected_y = 0;       // Current selection
    TicTacToeButton_Options* buttonOptions;   // Button configuration
    ftxui::Component gridComponent;           // FTXUI component
    ftxui::ScreenInteractive& screen;         // Screen reference

public:
    int bigicon = 0;                          // Grid state (0=in play, 1=X, 2=O, 3=tie)
    int grid[3][3];                           // Cell values

    TicTacToeButton* (&getbuttons())[3][3];   // Get buttons array
    int (*getGridRef())[3];                   // Get grid reference
    void takefocus_sm_grid(int x=1, int y=1); // Set focus to specified cell
    ftxui::Component getGridComponent();      // Get grid UI component
    void setbigicon(int bigicon_set);         // Update grid state
};

Function:

• Manages a standard 3×3 tic-tac-toe grid
• Tracks local game state (win/loss/tie)
• Handles sub-grid rendering
• Switches between normal grid and win symbol display
• Manages focus navigation within the grid

LargeGrid

class LargeGrid {
private:
    SmallGrid* grids[3][3];                    // 3×3 grid of SmallGrids
    int selected_x = 0, selected_y = 0;        // Current selection
    Component mainComponent;                   // Main UI container
    int grids_val[3][3][3][3];                 // 4D array of cell values
    int big_grid_values[3][3];                 // Sub-grid results
    TicTacToeButton_Options_Grid grid_options; // Button options
    ftxui::ScreenInteractive& screen;          // Screen reference

public:
    int getValue(int bigRow, int bigCol, int smallRow, int smallCol) const;
    int getValue_big(int bigRow, int bigCol);
    void get4DArray(int (*out)[3][3][3]) const;
    void setoptions(int bigRow, int bigCol, TicTacToeButton_Options op);
    void set_valid_grid(int bigRow, int bigCol);  // Highlight valid next grid
    Component getComponent();                     // Get main UI component
    void setbigicon_big(int x, int y, int icon);  // Update sub-grid state
    void takefocus_big(int x, int y, int z, int w); // Set focus
    void setCurrentPlayer(int player);            // Set current player
    void SetUpdateCallback(std::function<void()> callback);
    void makemove(int gx, int gy, int x, int y);  // Make a move (used by AI)
};

Function:

• Manages the complete 9×9 Ultragrid game board
• Enforces the "next grid" rule (player must play in grid corresponding to opponent's last move)
• Handles rendering of the entire game board
• Provides game state access for AI decision-making
• Tracks win conditions across sub-grids
• Manages global game state
• Facilitates programmatic moves for AI opponent

2. Game Management Classes

UltragridGameManagerMultiplayer

class UltragridGameManagerMultiplayer {
public:
    void StartGame();                // Initialize game
    int& gamestatus;                 // Game result (0=ongoing, 1=X win, 2=O win, 3=tie)
    Component renderer;              // Main UI renderer
    LargeGrid grid;                  // Game board
    void SetupUI(bool is_singleplayer); // Setup UI components

protected:
    ftxui::ScreenInteractive& screen;   // Screen reference
    Component gridcmp;                   // Grid component
    Component gridholder;                // Grid container
    Component options;                   // Option buttons
    Component main_container;            // Main UI container

    virtual void UpdateUI();             // Update game state
    bool CheckAndUpdateSmallGrids();     // Check sub-grid victories
    bool CheckGameEnd();                 // Check for game end
    void UpdateValidGrids();             // Update valid move locations
    void RefreshGridComponent(bool);     // Refresh UI components
    void SwitchPlayer();                 // Switch active player
};

Function:

• Manages the multiplayer game flow
• Handles turn-based gameplay
• Updates game state after each move
• Checks for victories and game end
• Manages UI updates and rendering

UltragridGameManagerSingleplayer

class UltragridGameManagerSingleplayer : public UltragridGameManagerMultiplayer {
protected:
    void UpdateUI() override;    // Override update for AI integration

public:
    bool MakeAIMove();           // Request AI to make a move
};

Function:

• Extends multiplayer game for singleplayer gameplay
• Integrates AI opponent moves
• Manages player vs. AI turn flow
• Handles difficulty settings

UltragridAI

class UltragridAI {
public:
    static bool MakeMove(int difficulty, LargeGrid& grid);  // Main move function

private:
    static bool MakeBasicMove(LargeGrid& grid);     // Easy difficulty
    static bool MakeRandomMove(LargeGrid& grid);    // Medium difficulty
    static bool MakeSmartMove(LargeGrid& grid);     // Hard difficulty (not implemented)
};

Function:

• Provides AI opponent decision-making
• Implements multiple difficulty levels
• Uses game state to determine optimal moves
• Interfaces with LargeGrid to execute moves

3. State Management

namespace variables {
    extern int currentPlayer;    // Current player (1=X, 2=O)
    extern int lastmove[2];      // Last move coordinates
    extern int difficulty;       // AI difficulty level
}

namespace callbacks {
    extern std::function<void()> onUpdate;  // Game state update callback
}

Function:

• Provides global game state tracking
• Enables communication between components
• Stores game configuration
• Facilitates update notifications

This comprehensive class documentation reflects the current architecture of the Ultragrid project, showing the relationships between UI components, game logic, and state management.

GAME FEATURES

1. AI System

class UltragridAI {
public:
    static bool MakeMove(int difficulty, LargeGrid& grid);
private:
    static bool MakeBasicMove(LargeGrid& grid);     // Simple first-available move
    static bool MakeRandomMove(LargeGrid& grid);    // Random selection from available moves
    static bool MakeSmartMove(LargeGrid& grid);     // Planned: Advanced strategy
};

Difficulty Levels:

Level	Strategy	Implementation
Basic (0)	Takes first available valid move	Scans grid in sequence until finding open cell
Random (1)	Selects randomly from valid moves	Collects all valid moves then chooses randomly
Smart (2)	Advanced strategy (planned)	Will implement strategic evaluation

AI Decision Process:

bool UltragridAI::MakeRandomMove(LargeGrid& grid) {
    // 1. Collect valid moves based on last move
    std::vector<std::tuple<int, int, int, int>> availableMoves;
    int nextGrid_x = variables::lastmove[0];
    int nextGrid_y = variables::lastmove[1];

    // 2. Find moves in targeted grid if possible
    if (nextGrid_x != -1 && nextGrid_y != -1 &&
        grid.getValue_big(nextGrid_x, nextGrid_y) == 0) {
        // Collect moves in the targeted grid
        // ...
    }

    // 3. If no moves available in targeted grid, find any valid move
    if (availableMoves.empty()) {
        // Collect moves from any open grid
        // ...
    }

    // 4. Make random selection
    if (!availableMoves.empty()) {
        int randomIndex = rand() % availableMoves.size();
        auto [gx, gy, x, y] = availableMoves[randomIndex];
        grid.makemove(gx, gy, x, y);
        return true;
    }
    return false;
}

2. FTXUI Integration

Interactive Button System:

ButtonOption buttonoptions = ButtonOption::Animated();
buttonoptions.animated_colors.background.Set(Color::Grey11, Color::White);

buttonoptions.transform = [&shift](const EntryState& s) {
    auto element = text(s.label) | hcenter | vcenter;
    if (s.focused) {
        element = element | color(LinearGradient()
                                .Angle(45+shift)
                                .Stop(Color::DeepPink1)
                                .Stop(Color::DeepSkyBlue1));
    }
    return element;
};

Grid Rendering:

container = Container::Vertical({}, &selected_y);
for (int i = 0; i < 3; i++) {
    auto row = Container::Horizontal({}, &selected_x);
    for (int j = 0; j < 3; j++) {
        row->Add(buttons[i][j]->GetButton());
        if (j < 2) {
            row->Add(Renderer([]{
                return separator();
            }));
        }
    }
    container->Add(row);
}

Dynamic UI Updates:

auto player_info = Renderer([this, is_singleplayer] {
    if(is_singleplayer) {
        auto a = nonWrappingParagraph(happy);
        return vbox({
            text("Singleplayer ") | color(Color::Green),
            filler(),
            a,
            filler(),
        }) | flex;
    }
    else {
        auto a = nonWrappingParagraph("hi");
        if(variables::currentPlayer == 1) {
            a = nonWrappingParagraph(smallx) | color(Color::Red);
        }
        else {
            a = nonWrappingParagraph(smallo) | color(Color::Blue);
        }
        return vbox({
            text("Current Player: ") | color(Color::Green),
            filler(),
            a,
            filler()
        }) | flex;
    }
});

3. Animation System

Gradient Animation:

std::atomic<bool> refresh_ui_continue = true;
std::thread refresh_ui([&] {
    while (refresh_ui_continue) {
        std::this_thread::sleep_for(0.05s);
        // Update the shift variable to create gradient motion
        screen.Post([&] { shift++; });
        // Request screen redraw with updated values
        screen.Post(Event::Custom);
    }
});

Button Animation:

auto option = MenuOption().HorizontalAnimated();
option.underline.SetAnimationDuration(200ms);
option.underline.color_active = Color::Red;
option.underline.color_inactive = Color::Blue;
option.underline.follower_delay = 50ms;

Splash Screen Animation:

std::string command = "echo -e \"" + out_screen_string +
                      "\" | tte scattered";
system(command.c_str());

4. Game Modes

Singleplayer Mode:

• Player vs AI opponent
• Three difficulty levels
• AI takes turns automatically after player moves

void ultragrid_start_singleplayer() {
    auto screen = ScreenInteractive::Fullscreen();
    int game_status = 0;
    UltragridGameManagerSingleplayer game(screen, game_status);
    game.SetupUI(true);  // true = singleplayer mode
    screen.Loop(game.renderer);
    EndScreenUI(11, game_status);
}

Multiplayer Mode:

• Two players taking turns
• Turn-based gameplay with visual indicators
• Valid move highlighting

void ultragrid_start_multiplayer() {
    auto screen = ScreenInteractive::Fullscreen();
    int game_status = 0;
    UltragridGameManagerMultiplayer game(screen, game_status);
    game.SetupUI(false);  // false = multiplayer mode
    screen.Loop(game.renderer);
    EndScreenUI(12, game_status);
}

5. End Game Handling

Winner Detection:

bool CheckGameEnd() {
    int bigBoard[3][3];
    for (int x = 0; x < 3; x++) {
        for (int y = 0; y < 3; y++) {
            bigBoard[x][y] = grid.getValue_big(x, y);
        }
    }

    int finalResult = checkBoard(bigBoard);
    if (finalResult == 1 || finalResult == 2 || finalResult == 3) {
        gamestatus = finalResult;
        screen.ExitLoopClosure()();
        return true;
    }
    return false;
}

End Screen:

void EndScreenUI(int gameMode, int winner) {
    // Set winner message and art based on result
    std::string winner_message;
    std::string winner_art;
    if (winner == 1) {
        winner_message = "Player 1 Wins!";
        winner_art = bigx;
    } else if (winner == 2) {
        winner_message = "Player 2 Wins!";
        winner_art = bigo;
    } else if (winner == 3) {
        winner_message = "It's a Draw!";
        winner_art = bigtie;
    }

    // Options to play again, return to menu, or quit
    auto buttons = Container::Horizontal({
        Button("Play Again", [...]),
        Button("Main Menu", [...]),
        Button("Quit", [...]),
    });
}

6. Interactive User Interface

ASCII Art Display:

inline std::string art =
R"(
██╗░░░██╗██╗░░░░░████████╗██████╗░░█████╗░░██████╗░██████╗░██╗██████╗░
██║░░░██║██║░░░░░╚══██╔══╝██╔══██╗██╔══██╗██╔════╝░██╔══██╗██║██╔══██╗
██║░░░██║██║░░░░░░░░██║░░░██████╔╝███████║██║░░██╗░██████╔╝██║██║░░██║
██║░░░██║██║░░░░░░░░██║░░░██╔══██╗██╔══██║██║░░╚██╗██╔══██╗██║██║░░██║
╚██████╔╝███████╗░░░██║░░░██║░░██║██║░░██║╚██████╔╝██║░░██║██║██████╔╝
░╚═════╝░╚══════╝░░░╚═╝░░░╚═╝░░╚═╝╚═╝░░╚═╝░╚═════╝░╚═╝░░╚═╝╚═╝╚═════╝░)";

inline std::string bigx =
R"(
██╗░░██╗
╚██╗██╔╝
░╚███╔╝░
░██╔██╗░
██╔╝╚██╗
)";

inline std::string bigo =
R"(
░█████╗░
██╔══██╗
██║░░██║
██║░░██║
╚█████╔╝
)";

Grid Highlighting:

void set_valid_grid(int bigRow, int bigCol) {
    for (int i = 0; i < 3; i++) {
        for (int j = 0; j < 3; j++) {
            if (i == bigRow && j == bigCol) {
                grid_options[i][j][0] = int {0};  // Enable this grid
            }
            else {
                grid_options[i][j][0] = int {1};  // Disable other grids
            }
        }
    }
}

Player Turn Indicators:

auto sep = separatorDouble();
if (variables::currentPlayer == 1) {
    sep = sep | color(ftxui::Color::Red);
}
else if (variables::currentPlayer == 2) {
    sep = sep | color(ftxui::Color::Blue);
}

C++ FEATURES USED IN ULTRAGRID

Core Language Features

Feature	Use Case	Example
Classes & OOP	Game structure	class LargeGrid, class TicTacToeButton
Inheritance	Game logic extension	class UltragridGameManagerSingleplayer : public UltragridGameManagerMultiplayer
Virtual Functions	Polymorphic behavior	virtual void UpdateUI(); and void UpdateUI() override;
Pointers	Dynamic memory	SmallGrid* grids[3][3];, TicTacToeButton* buttons[3][3];
References	Memory efficiency	int& gridValue;, ftxui::ScreenInteractive& screen;
Lambda Functions	Event callbacks	Button("Start Singleplayer", [&]{return_mode = 11; screen.ExitLoopClosure()();})
Function Pointers	Callback system	std::function<void()> onUpdate;
Namespaces	Code organization	namespace variables { extern int currentPlayer; }
Enum Classes	Type-safe enumerations	enum class CustomEvent { RefreshComponent, BurronCallback };
Method Chaining	UI styling	`element
Inline Functions	ASCII art storage	inline std::string art = R"(...)"
Raw String Literals	ASCII art	R"(...) for multi-line strings
Type Aliases	Complex types	using smallgrid_val_ptr = int (*)[3][3];

Standard Library Components

Component	Use Case	Example
std::vector	Dynamic collection	std::vector<std::tuple<int, int, int, int>> availableMoves;
std::tuple	Compound data	auto [gx, gy, x, y] = availableMoves[randomIndex];
std::string	Text handling	std::string winner_message;
std::atomic	Thread safety	std::atomic<bool> refresh_ui_continue = true;
std::thread	Animation thread	std::thread refresh_ui([&] { /* animation code */ });
std::function	Callback system	std::function<void()> callback
std::chrono	Animation timing	std::this_thread::sleep_for(0.05s);
std::stringstream	Text processing	std::stringstream ss(the_text);
std::random	AI randomization	int randomIndex = rand() % availableMoves.size();
std::memory	Smart pointers	std::shared_ptr, std::unique_ptr (implied by FTXUI)

C++11/14/17 Features

Feature	Use Case	Example
Auto Type Deduction	Simplified syntax	auto screen = ScreenInteractive::Fullscreen();
Structured Bindings	Tuple unpacking	auto [gx, gy, x, y] = availableMoves[randomIndex];
Range-based For Loop	Collection iteration	for (auto& line : Split(std::move(the_text)))
Nullptr	Safe null pointers	if (!smallGrid) { /* handle null */ }
Move Semantics	Performance	vbox(std::move(lines))
Strongly-typed Enums	Type safety	enum class CustomEvent { RefreshComponent }
Lambda Captures	Closure context	[&shift](const EntryState& s) { /* use shift */ }
Initializer Lists	Concise initialization	variables::lastmove[2] = {-1,-1};

Multithreading Features

Feature	Use Case	Example
Thread Creation	UI animations	std::thread refresh_ui([&] { /* animation */ });
Thread Joining	Clean shutdown	refresh_ui.join();
Atomic Operations	Thread synchronization	refresh_ui_continue = false;
Thread Sleep	Animation timing	std::this_thread::sleep_for(0.05s);
Thread-safe Post	UI updates	screen.Post([&] { shift += 2; });

FTXUI Integration

Feature	Use Case	Example
Component System	Interactive UI	auto button = Button("Quit", screen.ExitLoopClosure());
Event Handling	Input processing	CatchEvent([this](ftxui::Event event) { /* handle */ })
Element Composition	UI styling	`text("Current Player: ")
Layout Management	UI organization	Container::Vertical({title, player_info, exit_button})
Color Manipulation	Visual feedback	color(LinearGradient().Angle(shift).Stop(Color::DeepPink1))
Animation Loops	Dynamic effects	screen.Post([&] { shift++; }); screen.Post(Event::Custom);

---

CONCLUSION

PROJECT ACHIEVEMENTS

UltraGrid successfully modernizes the classic Tic-Tac-Toe concept by:

• Strategic Depth: Nested 3×3 grids create complex gameplay where each move determines the opponent's next playing field
• Engaging Visuals: Rich terminal graphics with ASCII art, color gradients, and animations
• AI Opponent System: Three difficulty levels providing appropriate challenge for different skill levels
• Cross-Platform Terminal UI: Leveraging FTXUI for a responsive, interactive experience
• Multi-Mode Gameplay: Both singleplayer and multiplayer options in a cohesive interface

TECHNICAL ACCOMPLISHMENTS

This project demonstrates mastery of:

• Object-Oriented Architecture: Hierarchical class structure with clean separation of concerns
• UI/UX Design: Intuitive terminal interface with visual feedback and smooth animations
• Game Logic Implementation: Complex rule enforcement and state management
• Multi-Threaded Programming: Thread-safe animations and UI updates
• Modern C++ Practices: Leveraging C++11/14/17 features for cleaner, safer code
• Component-Based Design: Modular components that can be tested and maintained independently

DESIGN PATTERNS & PRINCIPLES

UltraGrid implements several software design patterns:

• Model-View-Controller: Separation between game state, display, and input handling
• Observer Pattern: Callback system for game state updates
• Strategy Pattern: Different AI difficulty implementations
• Composite Pattern: Hierarchical grid structure (LargeGrid → SmallGrid → TicTacToeButton)
• SOLID Principles: Single responsibility, open-closed principle, and dependency inversion

CHALLENGES OVERCOME

The development process successfully addressed:

• Complex 4D state representation for the nested grid structure
• Thread synchronization for smooth animations without race conditions
• Terminal input handling in a responsive, user-friendly manner
• AI decision-making within the complex ruleset
• Graceful game flow management from start screen to end screen

FUTURE ROADMAP

The modular architecture enables several promising future enhancements:

• Advanced AI: Implement minimax algorithm for smarter opponent play
• Network Multiplayer: Add online play capabilities with matchmaking
• Game Statistics: Track win/loss records and player performance metrics
• Visual Enhancements: Additional animations and visual feedback elements
• Game Variants: Implement variations on the ruleset (different board sizes, winning conditions)
• Serialization: Save and load game states
• Replay System: Record and replay memorable games

CODE QUALITY & MAINTAINABILITY

The codebase prioritizes long-term maintainability through:

• Clear class hierarchies with well-defined responsibilities
• Consistent naming conventions and coding style
• Separation of interface and implementation
• Use of modern C++ idioms to reduce error-prone code
• Extensible architecture that allows for feature additions without major refactoring

---

UltraGrid demonstrates how modern C++ techniques and thoughtful design can transform a simple game concept into a feature-rich application with depth and replayability. The project serves as both an engaging game and a showcase of software engineering best practices in game development.
