Excelwind

Excelwind is a declarative, JSX-based Excel generator with Excel formula support, Tailwind-style styling, Row/Column merging, Templating, and more.

It lets you build .xlsx files with a custom JSX runtime, ExcelJS under the hood, and a Tailwind-style className API for styling.

Is is designed for developer-friendly spreadsheet generation, styling, and templating.

What You Get

Declarative JSX for workbooks, worksheets, rows, cells, groups, images, and templates
Tailwind-style utility classes via className
Direct access to formatting, formulas, merges, named ranges, processors, and images
Template-based workflows that start from existing .xlsx files
A custom JSX runtime with TypeScript/LSP support and no React dependency
Example workbooks and screenshots that show real output

Installation

bun add @gavin-lynch/excelwind

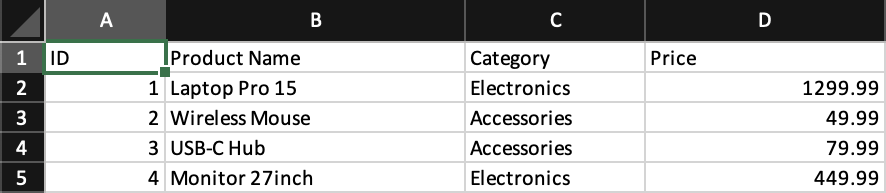

Quick Start

/** @jsxImportSource @gavin-lynch/excelwind */
import { writeFile } from 'node:fs/promises';
import { Workbook, Worksheet, Row, Cell, render } from '@gavin-lynch/excelwind';

const workbook = await render(
  <Workbook>
    <Worksheet name="Sheet1">
      <Row>
        <Cell value="Hello" className="font-bold" />
        <Cell value="World" className="text-right" />
      </Row>
    </Worksheet>
  </Workbook>,
);

await writeFile('hello.xlsx', Buffer.from(await workbook.xlsx.writeBuffer()));

Why Excelwind

Excelwind is useful when you want spreadsheet output that is:

easier to compose than manual ExcelJS row/cell mutation
easier to style than raw ExcelJS style objects everywhere
structured like a component tree instead of a giant imperative script
still capable of advanced Excel features such as merges, formulas, templates, named ranges, and images

The project is especially suited to:

reports
exports from application data
invoices and branded sheets
dashboards and matrix-like layouts
spreadsheets where JSX composition is a better fit than direct worksheet mutation

JSX Runtime Setup

Excelwind uses a custom JSX runtime. It is not React.

At the top of your .tsx file, add:

/** @jsxImportSource @gavin-lynch/excelwind */

TypeScript should use the automatic JSX runtime style. A typical configuration looks like:

{
  "compilerOptions": {
    "jsx": "react-jsx",
    "jsxImportSource": "@gavin-lynch/excelwind"
  }
}

This tells TypeScript to use Excelwind's runtime exports from:

@gavin-lynch/excelwind/jsx-runtime
@gavin-lynch/excelwind/jsx-dev-runtime

Excelwind also ships custom JSX type declarations so editors and LSPs understand that your JSX produces Excelwind nodes rather than React elements.

Core Concepts

At render time, Excelwind turns a JSX tree into an ExcelJS.Workbook.

The main authoring model is:

Workbook as the root
Worksheet for sheets
Column for column-wide settings
Row for row structure
Cell for values, formats, formulas, merges, and cell-level images
Group for shared styling, processors, and named ranges
Image for worksheet-level or cell-level image placement
Template for importing and expanding existing .xlsx files

The render pipeline validates the JSX tree before rendering, then writes the final workbook through ExcelJS.

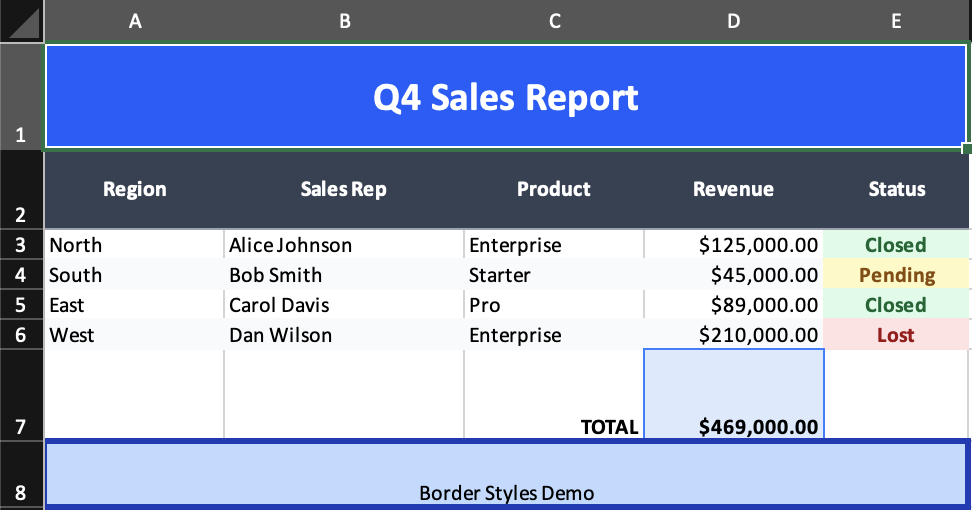

Styling

className is the canonical styling API.

<Cell value="Total" className="font-bold bg-blue-600 text-white text-right" />

For manual conversion, you can also use excelwindClasses():

import { excelwindClasses } from '@gavin-lynch/excelwind';

excelwindClasses('font-bold bg-blue-600 text-white text-right');

Supported styling categories

Background colors

Use bg-{color}-{shade} to set a solid fill.

excelwindClasses('bg-blue-600');
excelwindClasses('bg-slate-200');

Text colors

Use text-{color}-{shade} to set font.color.

excelwindClasses('text-white');
excelwindClasses('text-emerald-700');

Font sizes

Class	Size (pt)
`text-xs`	10
`text-sm`	11
`text-base`	12
`text-lg`	14
`text-xl`	16
`text-2xl`	20
`text-3xl`	24
`text-4xl`	30

Font styles

Class	Effect
`font-bold`	`font.bold = true`
`font-italic`	`font.italic = true`
`font-underline`	`font.underline = true`

Alignment

Horizontal:

text-left
text-center
text-right

Vertical:

align-top
align-middle
align-center
align-bottom

Wrapping:

text-wrap
text-nowrap

Borders

Borders are composed from multiple class fragments:

sides: border, border-t, border-r, border-b, border-l, border-x, border-y
style: border-thin, border-thick, border-dotted, border-dashed, border-double
color: border-{color}-{shade}

Examples:

excelwindClasses('border border-gray-300');
excelwindClasses('border-b border-dashed border-amber-600');
excelwindClasses('border-x border-thick');

Styling rules and precedence

className is preferred over manually writing style objects for common cases
style merging happens in this order: column -> group -> row -> cell
style still works and overrides the equivalent values from className
unsupported classes throw an error so typos fail fast

Mapped Style Properties

excelwindClasses() maps only these ExcelJS style fields:

font.size
font.bold
font.italic
font.underline
font.color
fill.type
fill.pattern
fill.fgColor
alignment.horizontal
alignment.vertical
alignment.wrapText
border.{top|right|bottom|left}.style
border.{top|right|bottom|left}.color

It does not set numFmt. Use the format prop for number and date formatting.

Formats

Number and date formatting are handled with the format prop, not className.

<Column format='"$"#,##0.00' />
<Cell value={new Date()} format="yyyy-mm-dd" />

Format precedence

cell format wins over row, group, and column formats
row or group formats apply only when a cell does not override them
column formats provide convenient defaults for entire columns

Formats are written through ExcelJS numFmt and interpreted by Excel when the workbook is opened.

Formulas

Use the formula prop on Cell.

<Cell formula="SUM(B2:B10)" value={1234} />

Cached results

if value is also provided, it becomes the cached result Excel can show before recalculation
if value is omitted, Excel computes the result when the file is opened

Formula strings are passed through to ExcelJS and Excel; Excelwind does not implement its own formula engine.

Named ranges can make formulas easier to read:

<Column id="Salaries" format='"$"#,##0.00' />
<Cell formula="SUM(Salaries)" format='"$"#,##0.00' />

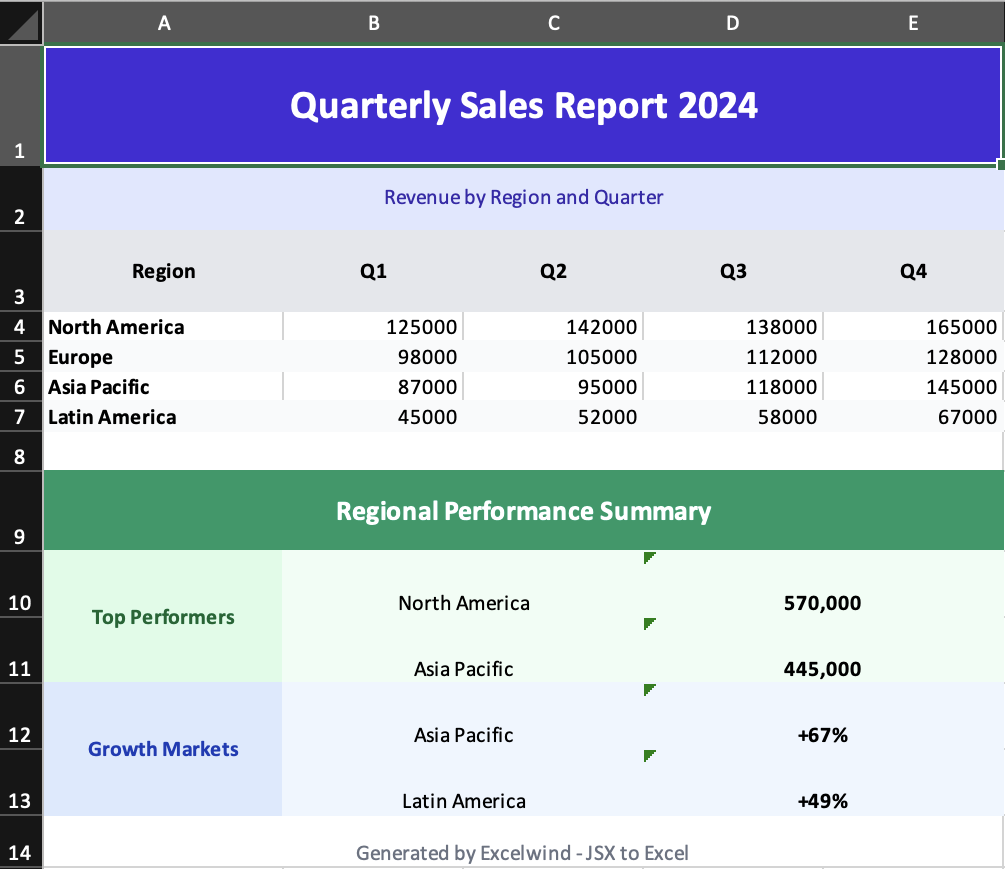

Merges

Excelwind supports merged layouts directly with colSpan and rowSpan on Cell.

<Row>
  <Cell value="Quarterly Sales Report 2024" colSpan={5} className="text-center font-bold" />
</Row>

<Row>
  <Cell value="Top Performers" rowSpan={2} className="align-center font-bold" />
  <Cell value="North America" colSpan={2} />
  <Cell value="570,000" colSpan={2} className="text-right" />
</Row>

What merges are good for

title rows that span the full width of a report
multi-level headers
summary blocks and dashboard cards
vertically grouped category labels

Merge placement behavior

colSpan reserves cells to the right
rowSpan reserves the same columns on following rows
later cells are placed into the next available column automatically
covered cells should not be authored explicitly; Excelwind skips over them while rendering

Merge styling tips

use borders intentionally if you want a visible grid around merged sections
use align-center or align-middle on large merged headers
use row or group styles when several merged cells share the same appearance

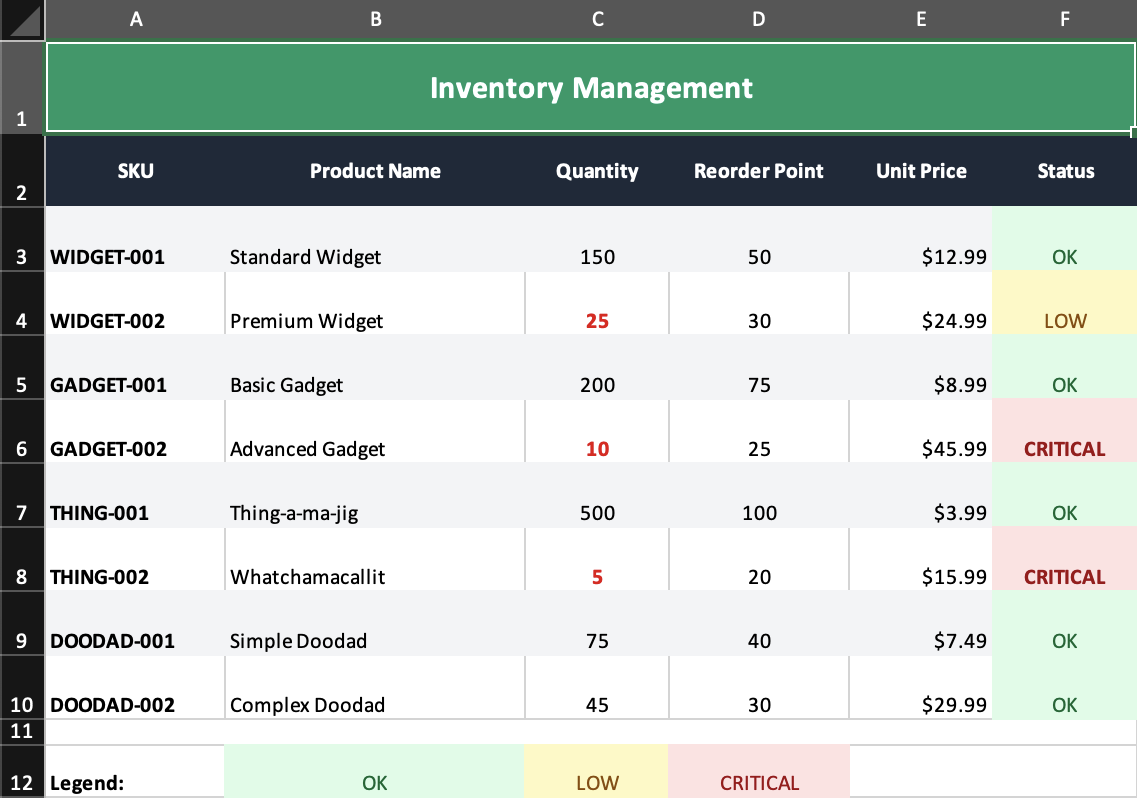

Processors

Processors let you intercept nodes during render and return modified nodes.

They are useful for:

zebra striping
conditional styling
value-based transformation
reusable render-time rules that you do not want to repeat in every JSX node

Example:

import { isRow, mergeDeep, type AnyNode, type Processor, type ProcessorContext } from '@gavin-lynch/excelwind';

const zebraStripe: Processor = (node: AnyNode, ctx: ProcessorContext) => {
  if (!isRow(node) || ctx.rowIndex === undefined) {
    return node;
  }

  if (ctx.rowIndex % 2 === 1) {
    return {
      ...node,
      props: {
        ...node.props,
        style: mergeDeep(node.props.style, {
          fill: {
            type: 'pattern',
            pattern: 'solid',
            fgColor: { argb: 'F3F4F6' },
          },
        }),
      },
    };
  }

  return node;
};

<Group processor={zebraStripe}>{data.map((item) => <Row>{/* ... */}</Row>)}</Group>;

Processor context

ProcessorContext provides:

rowIndex
columnIndex
row

Processors are commonly attached to Group so they apply to a repeated section of the tree.

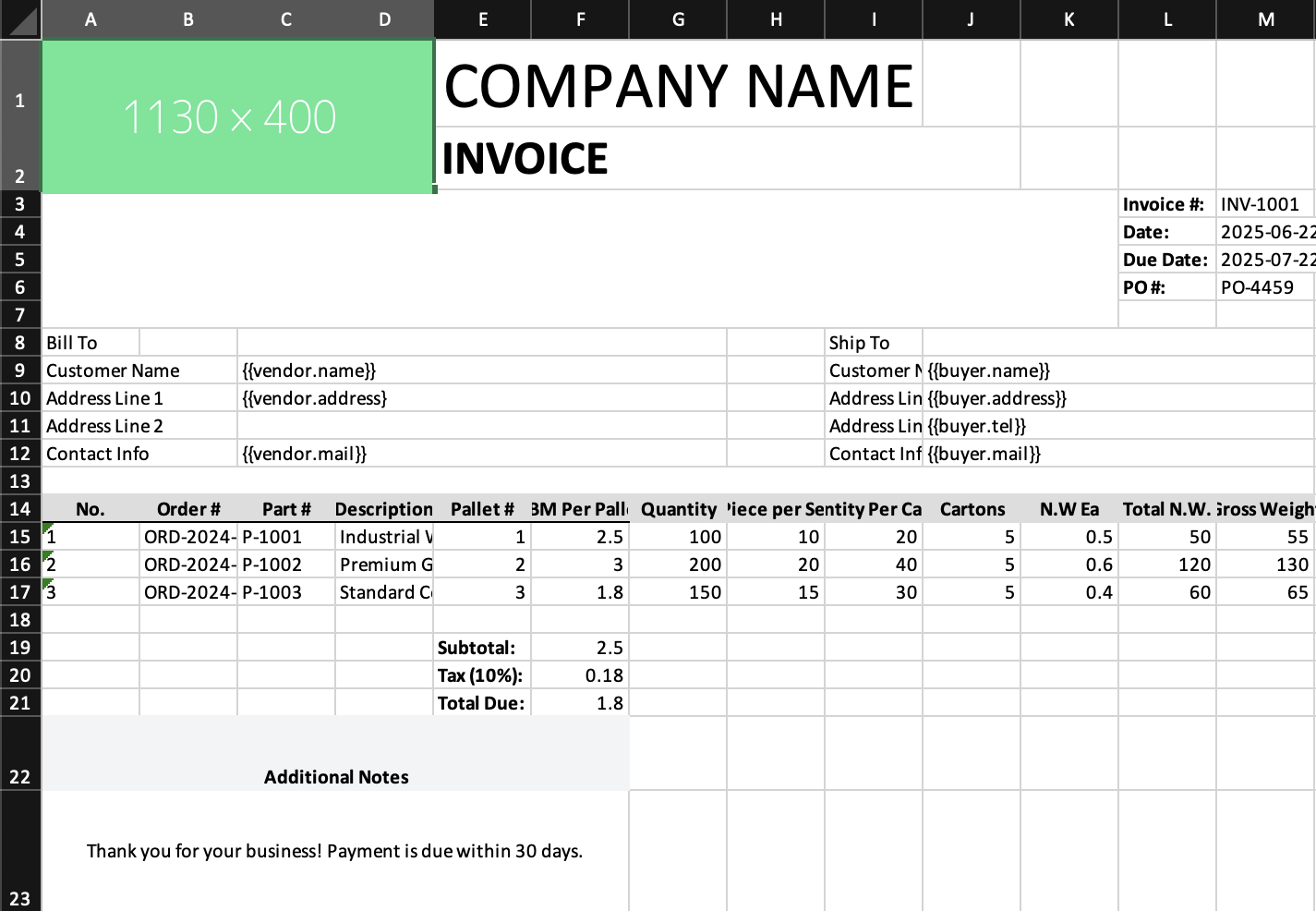

Templates

Template loads an existing .xlsx file and expands a placeholder row for each data item.

<Template
  src="./template.xlsx"
  data={{
    columns: [
      { id: 'name', names: ['Name'] },
      { id: 'price', names: ['Price'] },
    ],
    rows: [
      { name: 'Widget', price: 10 },
      { name: 'Gadget', price: 20 },
    ],
  }}
/>

How template expansion works

Excelwind finds the header row that matches columns[].names
the next row becomes the data template row
that row is duplicated once per object in data.rows
formulas in the template row are preserved and offset as rows expand

Good use cases for templates

invoices
branded forms
layouts that are easier to design visually in Excel first
reports where static sheet structure already exists

Current scope and limitation

Template expansion currently focuses on row-based placeholder duplication beneath a matched header row.

That means:

row formulas are preserved and offset
row-driven data expansion works
placeholders elsewhere in the sheet are not automatically replaced yet

This is visible in the template example screenshot later in this README.

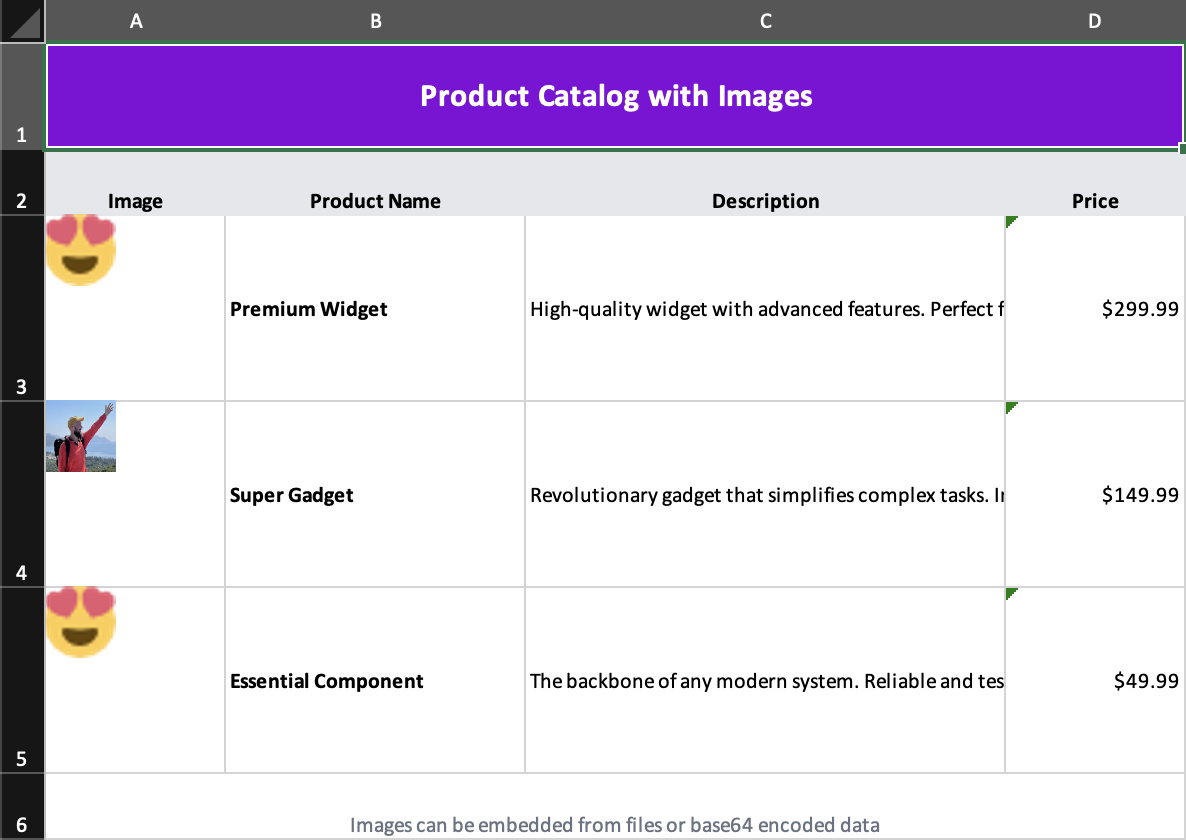

Images

Image can be placed directly under Worksheet or nested inside Cell.

Worksheet-level image:

<Worksheet name="Report">
  <Image src="./logo.png" extension="png" range="A1:C3" />
</Worksheet>

Cell-level image:

<Row>
  <Cell value="Logo">
    <Image src="./logo.png" extension="png" />
  </Cell>
</Row>

Positioned image:

<Image
  src="./logo.png"
  extension="png"
  position={{ tl: { col: 0, row: 0 }, ext: { width: 120, height: 48 } }}
/>

Image notes

images can come from src, Buffer, or base64-backed content
if position is omitted for a cell image, Excelwind estimates a default size from row height and column width
worksheet-level images are useful for banners and logos
cell-level images are useful for catalog rows or record-specific thumbnails

Components

`<Workbook>`

Root container for every Excelwind tree.

<Workbook>
  <Worksheet name="Sheet1">...</Worksheet>
</Workbook>

Notes:

must be the root element
rendered with render()

`<Worksheet>`

Defines a single sheet and its ExcelJS worksheet properties.

<Worksheet name="Sheet1" properties={{ tabColor: { argb: 'FF0000' } }}>
  ...
</Worksheet>

Props:

name required
properties optional

Direct children may be:

Column
Row
Group
Template
worksheet-level Image

`<Column>`

Defines column-wide settings.

<Column width={20} format='"$"#,##0.00' className="text-right" />
<Column id="StartDates" width={15} format="yyyy-mm-dd" className="text-center" />

Props:

width
format
className
style
id

If id is set, Excelwind creates a full-height named range for that column.

`<Row>`

Groups cells into a single worksheet row.

<Row height={24} className="bg-gray-50">
  <Cell value="Hello" className="font-bold" />
</Row>

Props:

height
className
style
format
id

If id is set, Excelwind creates a named range for the rendered row.

`<Cell>`

The atomic unit of worksheet content.

<Cell value="Text" className="text-left" />
<Cell value={123} format='"$"#,##0.00' className="text-right" />
<Cell formula="SUM(A1:A10)" value={1234} />
<Cell value="Merged" colSpan={2} rowSpan={2} className="text-center" />

Props:

value
formula
format
className
style
colSpan
rowSpan
id

Cell can also contain child Image nodes.

`<Group>`

Container for shared styling, formatting, processors, and named ranges.

<Group className="bg-gray-100" processor={zebraStripe}>
  <Row>...</Row>
  <Row>...</Row>
</Group>

Useful behaviors:

propagates className and style to descendants
can run a processor across rows or cells in the subtree
can create a named range if id is set
can be nested
can appear inside rows to style a subset of cells

If a Group has an id, its named range spans all rows rendered inside that group from column A to the last used column on the sheet.

`<Image>`

Embeds images into worksheets or cells.

<Image src="./logo.png" extension="png" range="A1:C3" />

<Image
  buffer={base64String}
  extension="png"
  position={{ tl: { col: 0, row: 0 }, ext: { width: 64, height: 64 } }}
  tooltip="Company Logo"
/>

Common props:

src
buffer
extension
range
position
tooltip
hyperlink

`<Template>`

Imports and expands a template workbook section.

<Template
  src="template.xlsx"
  data={{
    columns: [
      { id: 'name', names: ['Name'] },
      { id: 'price', names: ['Price'] },
    ],
    rows: [
      { name: 'Widget', price: 100 },
    ],
  }}
/>

Use Template when sheet layout should begin from an existing Excel file rather than pure JSX.

Examples

All examples write .xlsx files into examples/output/.

Run them all:

Bun is the primary local workflow.

bun run examples

Or individually:

bun run example:basic
bun run example:styling
bun run example:dynamic
bun run example:processors
bun run example:merged
bun run example:templates
bun run example:images
bun run example:complex-merge

01. Basic workbook structure

source: examples/01-basic.tsx
demonstrates the minimum viable workbook: Workbook, Worksheet, Column, Row, and Cell
useful as the smallest end-to-end rendering example

02. Styling with `className`

source: examples/02-styling.tsx
demonstrates shared header styling, row styling, borders, alignment, Group propagation, and formatted totals
best example for the Tailwind-style styling layer

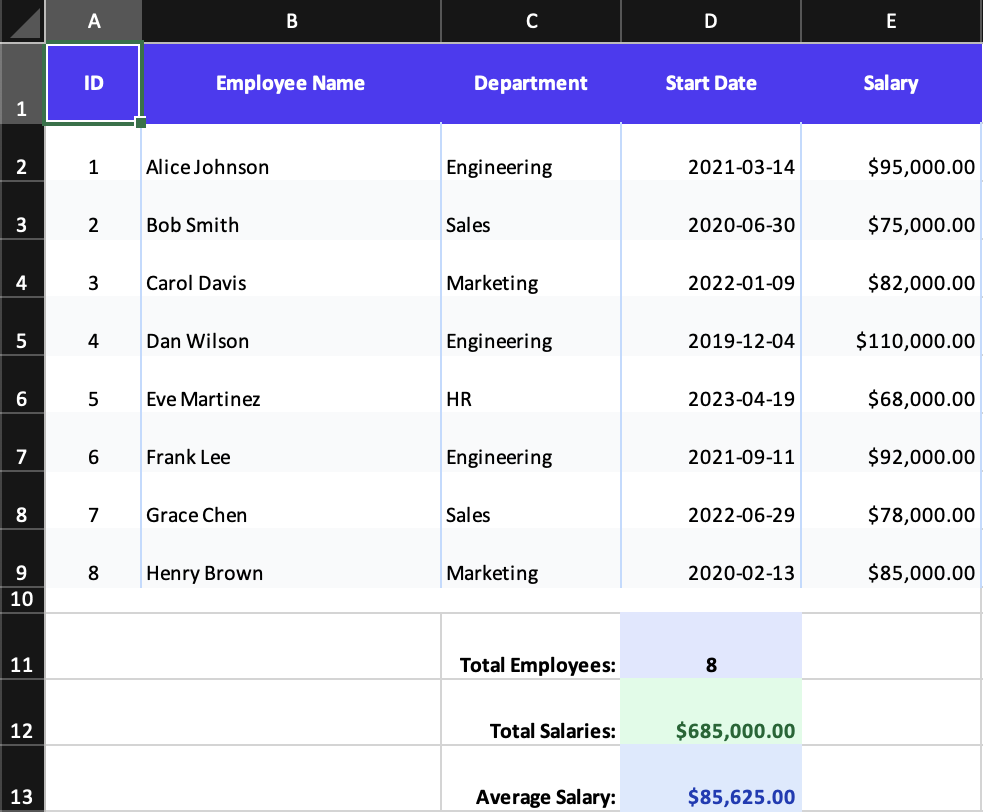

03. Dynamic rows, formats, formulas, and named ranges

source: examples/03-dynamic-data.tsx
demonstrates array-driven rows, date and currency formats, named column ranges, and formulas like SUM(Salaries)
good model for production export workflows

04. Processors and conditional styling

source: examples/04-processors.tsx
demonstrates zebra striping via processors and conditional status styling
best example for render-time transformation patterns

05. Merged cells and report layouts

source: examples/05-merged-cells.tsx
demonstrates practical colSpan and rowSpan layouts in a report
shows titles, summary bands, and vertically merged labels

06. Templates and post-template content

source: examples/06-templates.tsx
demonstrates importing an invoice template, expanding line-item rows, and appending JSX content below the template
also shows the current template limitation: non-row placeholders elsewhere in the sheet remain unchanged

07. Worksheet and cell-level images

source: examples/07-images.tsx
demonstrates base64-backed images, file-backed images, and positioned images inside rows
good reference for catalog or branded-sheet workflows

08. Advanced merge stress test

source: examples/08-complex-merge.tsx
stresses mixed rowSpan and colSpan combinations in one sheet
useful as a merge regression example and layout edge-case reference

Best examples by topic

styling: examples/02-styling.tsx
dynamic data + formulas: examples/03-dynamic-data.tsx
processors: examples/04-processors.tsx
practical merges: examples/05-merged-cells.tsx
templates: examples/06-templates.tsx
images: examples/07-images.tsx
merge edge cases: examples/08-complex-merge.tsx

API Summary

Main exports

render(root) -> returns an ExcelJS.Workbook
excelwindClasses(classString) -> returns a partial ExcelJS style object
components: Workbook, Worksheet, Column, Row, Cell, Group, Image, Template
utilities: mergeDeep, isRow, isCell, isGroup, isColumn, isImage, isWorksheet, isWorkbook

Public types

Processor
ProcessorContext
WorkbookProps
WorksheetProps
ColumnProps
RowProps
CellProps
GroupProps
ImageProps
TemplateProps

Entry point

Current top-level exports come from src/index.ts:

export * from './types';
export * from './components';
export * from './utils';
export { renderToWorkbook as render } from './renderRows';
export * from './className';

Validation And Render Contract

the JSX tree is validated before render
invalid parent-child relationships throw early
Workbook must be the root element
className is the canonical styling prop for Column, Group, Row, and Cell
render() returns an ExcelJS.Workbook, so writing the final file still uses ExcelJS methods like workbook.xlsx.writeBuffer()

Docs, Tests, And Local Development

Build the library

bun run build

Run examples

bun run examples

Run tests

bun run test

Lint and format

bun run lint
bun run lint:fix
bun run format

Run docs locally

bun run docs:dev

Build docs

bun run docs:build

Project Structure

excelwind/
├── src/
│   ├── index.ts
│   ├── components.tsx
│   ├── renderRows.ts
│   ├── className.ts
│   ├── types.ts
│   ├── utils.ts
│   ├── validate.ts
│   ├── jsx-types.d.ts
│   └── jsx-runtime/
│       ├── jsx-runtime.ts
│       └── jsx-dev-runtime.ts
├── tests/
├── examples/
│   ├── 01-basic.tsx
│   ├── 02-styling.tsx
│   ├── 03-dynamic-data.tsx
│   ├── 04-processors.tsx
│   ├── 05-merged-cells.tsx
│   ├── 06-templates.tsx
│   ├── 07-images.tsx
│   ├── 08-complex-merge.tsx
│   ├── expected/
│   ├── output/
│   └── assets/
├── docs/
└── package.json

License

MIT

Name		Name	Last commit message	Last commit date
Latest commit History 5 Commits
.github/workflows		.github/workflows
docs		docs
examples		examples
src		src
tests		tests
.gitignore		.gitignore
README.md		README.md
biome.json		biome.json
bun.lock		bun.lock
package.json		package.json
tsconfig.json		tsconfig.json
tsdown.config.ts		tsdown.config.ts

Folders and files

Latest commit

History

Repository files navigation

Excelwind

What You Get

Table Of Contents

Installation

Quick Start

Why Excelwind

JSX Runtime Setup

Core Concepts

Styling

Supported styling categories

Background colors

Text colors

Font sizes

Font styles

Alignment

Borders

Styling rules and precedence

Mapped Style Properties

Formats

Format precedence

Formulas

Cached results

Merges

What merges are good for

Merge placement behavior

Merge styling tips

Processors

Processor context

Templates

How template expansion works

Good use cases for templates

Current scope and limitation

Images

Image notes

Components

<Workbook>

<Worksheet>

<Column>

<Row>

<Cell>

<Group>

<Image>

<Template>

Examples

01. Basic workbook structure

02. Styling with className

03. Dynamic rows, formats, formulas, and named ranges

04. Processors and conditional styling

05. Merged cells and report layouts

06. Templates and post-template content

07. Worksheet and cell-level images

08. Advanced merge stress test

Best examples by topic

API Summary

Main exports

Public types

Entry point

Validation And Render Contract

Docs, Tests, And Local Development

Build the library

Run examples

Run tests

Lint and format

Run docs locally

Build docs

Project Structure

License

About

Topics

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

`<Workbook>`

`<Worksheet>`

`<Column>`

`<Row>`

`<Cell>`

`<Group>`

`<Image>`

`<Template>`

02. Styling with `className`

Packages
