boolmesh

Boolmesh is a pure Rust library for performing robust and efficient mesh boolean operations. It is a full-from-scratch Rust implementation inspired by Elalish’s Manifold, which is well known for its robustness and is now part of OpenSCAD.

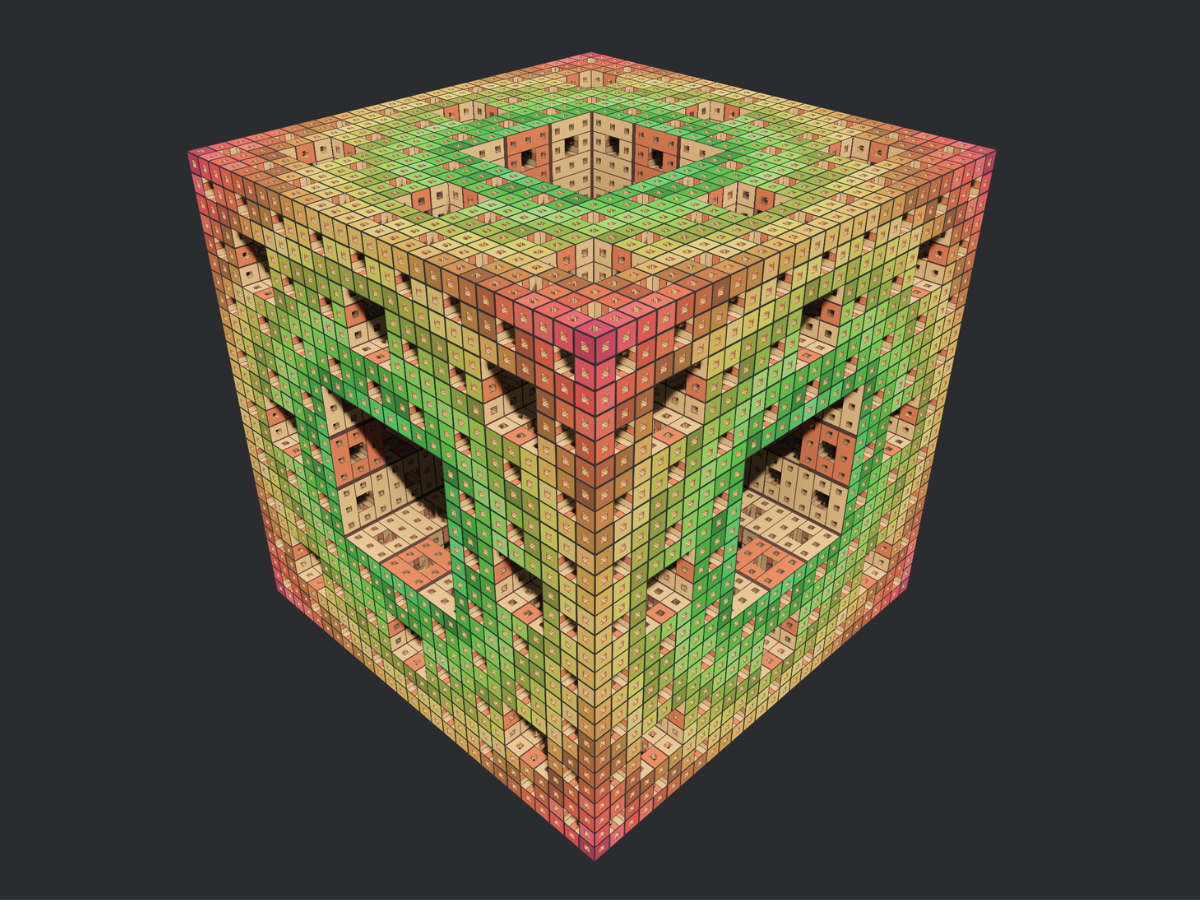

The codebase is clean and minimal, with dependencies only on glam—which provides SIMD acceleration—and optionally on rayon for multi-threading support. Besides being robust, Boolmesh is also very fast. For example, generating a Menger Sponge of depth 4 (the model shown above) takes only around 8 seconds on an Apple Silicon M4 using single-threading, and around 4 seconds with multi-threading enabled. Also, the library supports both 32-bit and 64-bit floating point arithmetic.

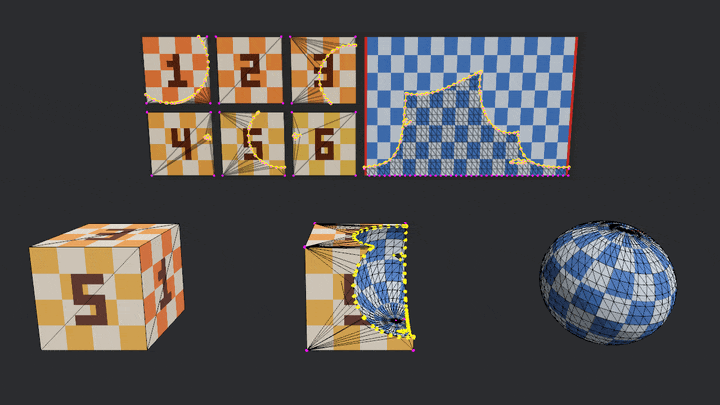

Carry any data through booleans

The useful point of boolmesh is that you can attach any value to a mesh and it survives the boolean. UVs, colors, normals, matrices, or your own struct: anything that can be added and scaled by a real number (Clone + PartialEq + Default + Add + Mul<Real>) works, since Manifold<S> is generic over the value type. Vertices created along the cut get values interpolated from the original faces, and seams such as UV borders stay sharp.

Usage

The usage is intentionally simple, as the library exposes only one main function for end users. To perform a boolean operation, construct a mesh buffer structure (called a Manifold) from vertex positions and face indices, then call compute_boolean() to obtain the result.

Note: Input meshes must be manifold, meaning they must not contain boundaries or overlapping geometry.

// plain meshes
let mfd_0 = Manifold::new(&positions_0, &indices_0).unwrap();
let mfd_1 = Manifold::new(&positions_1, &indices_1).unwrap();

// or meshes carrying one value per triangle corner (uv, color, normal, ...): values_0[i] belongs to indices_0[i]
let mfd_0 = Manifold::new_with_values(&positions_0, &indices_0, &values_0).unwrap();
let mfd_1 = Manifold::new_with_values(&positions_1, &indices_1, &values_1).unwrap();

let result = compute_boolean(&mfd_0, &mfd_1, OpType::Subtract).unwrap();

// extract positions, triangle indices and values
let positions = &result.ps;
let indices = result.hs.iter().map(|h| h.tail).collect::<Vec<_>>();
let values = &result.vals; // one value per triangle corner: values[i] belongs to indices[i]

Example of a Menger Sponge generator can be found in the examples folder.

 cargo run --package boolmesh --release --example menger_sponge --features=bevy,rayon,f32
